Project - Network Rail Derby EMCC

Key Project Details

Client:                  Mitie

Start date:            July 2022

End date:              August 2022

Duration:              3 weeks
Value:                   circa £24k

Location:              Network Rail Derby EMCC

Project scope

Aaron FM was commissioned to build a new office in the EMCC Control Room. Works included:

  • Take out of glazed panels and removal from site

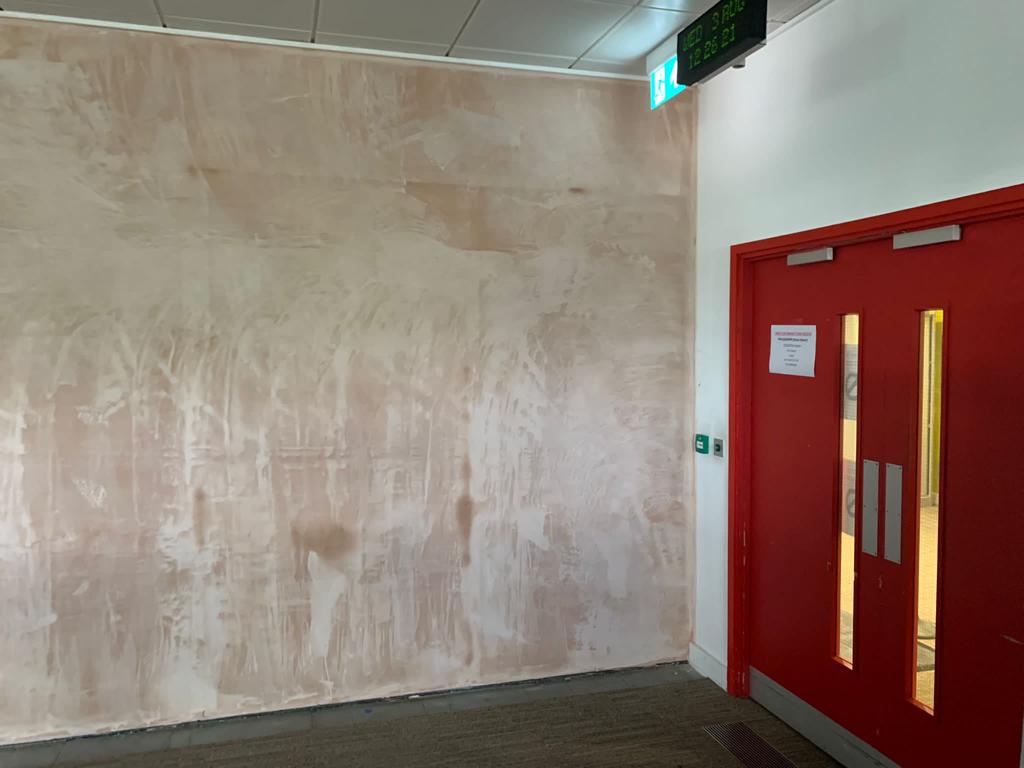

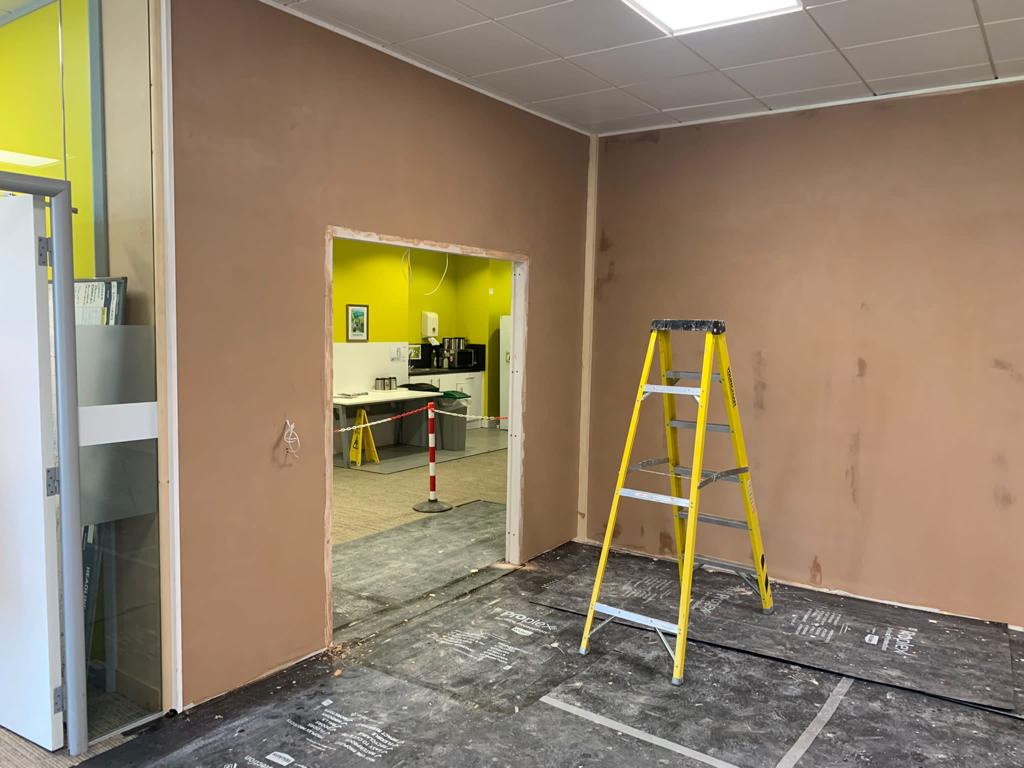

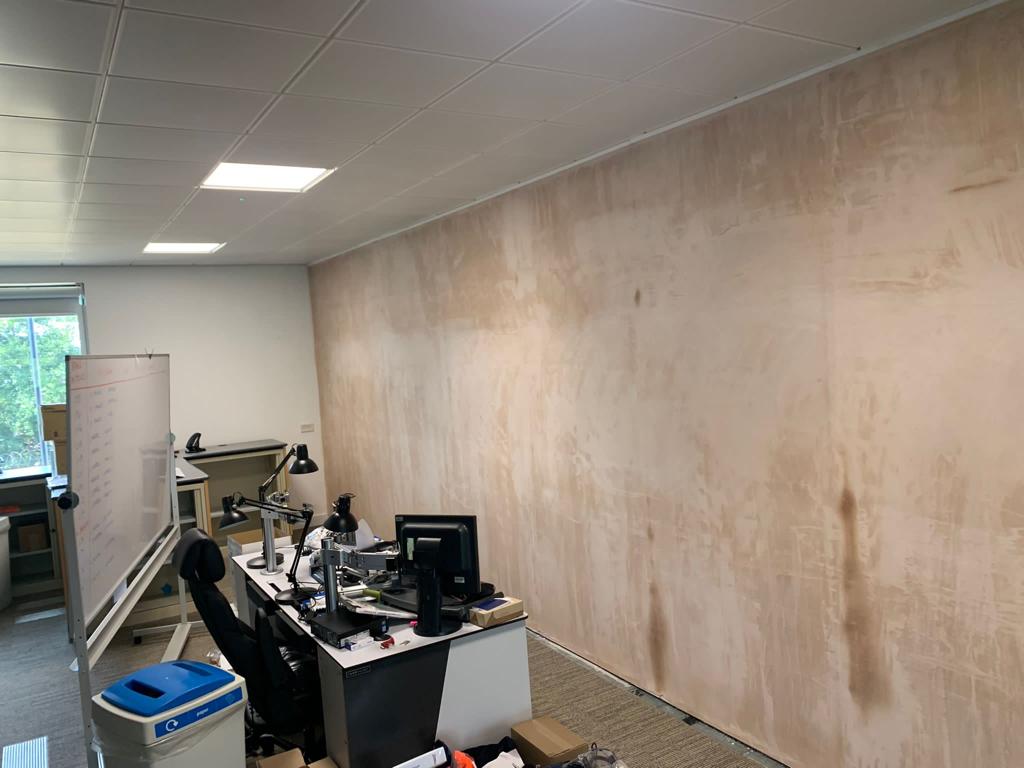

  • Construction of 70mm metal stud wall, with British Gypsum Gyproc Fireline Plasterboard 2400mm x 1200mm x 12.5mm to both sides, with Isover Acoustic Partition Roll APR 1200 (13000mm x 1200mm x 50mm), walls to be skim finished
  • MDF head timber to finish under metal ceiling to create detail to top of wall

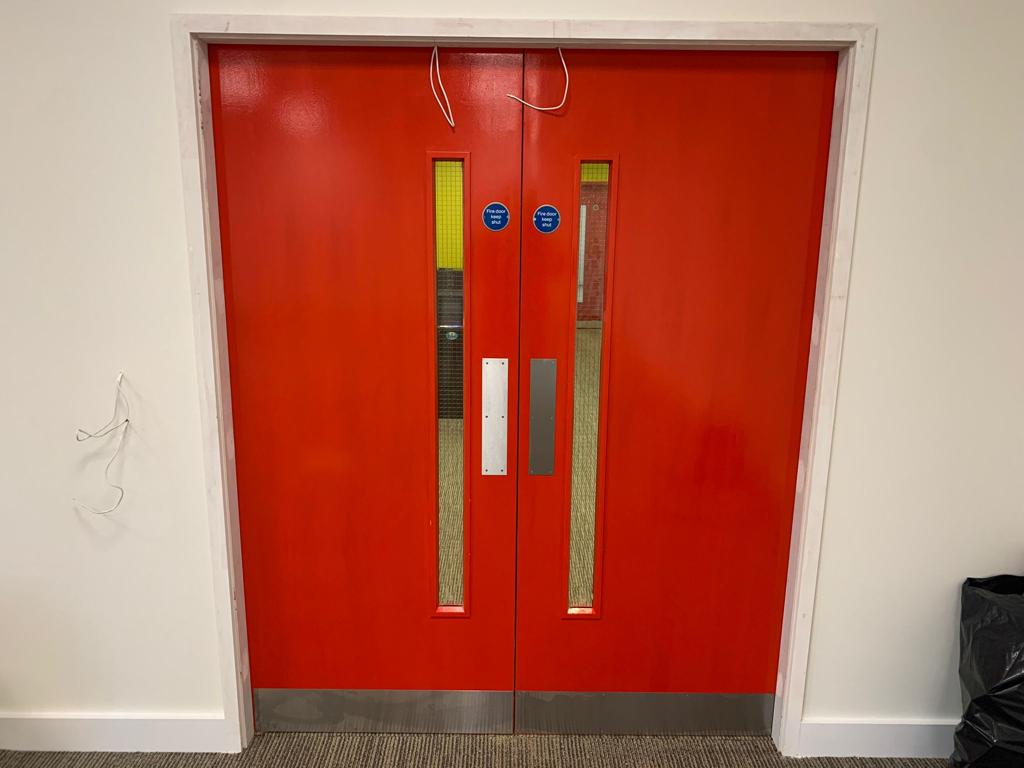

  • Supply and installation of double set FD30 min paint grade fire doors with glazed aperture to match existing, with fire rated frame

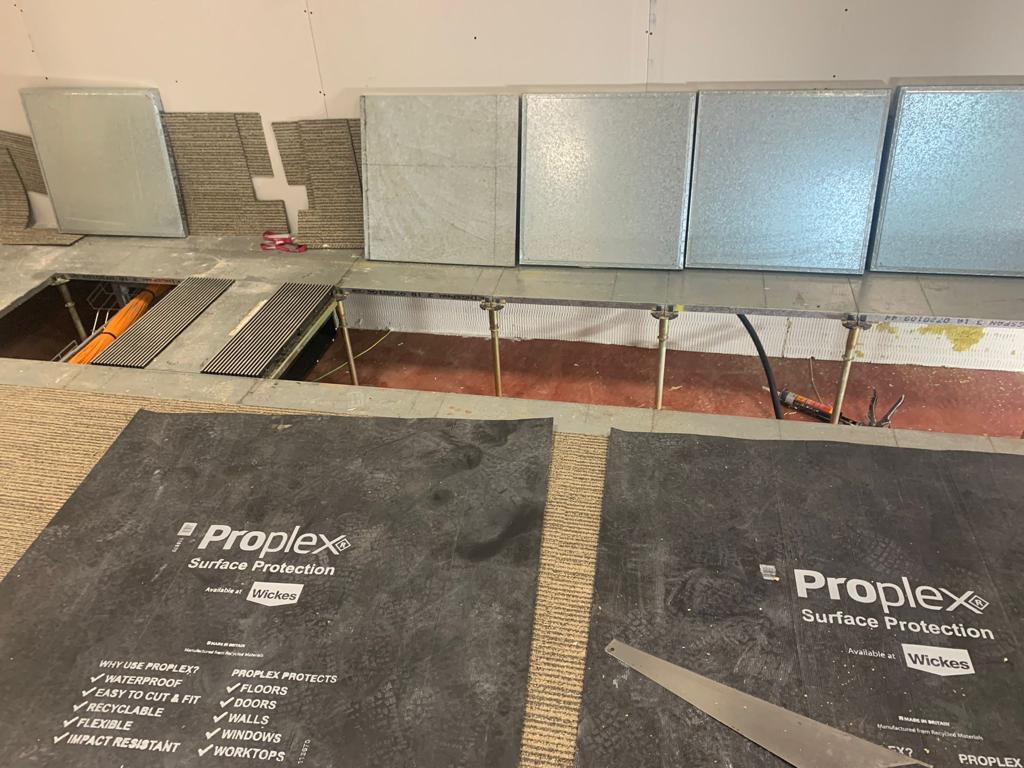

  • Take up raised floor tiles adjacent to new wall and installation of 50mm Rockwool Ablative Coated Batt to form fire barrier in raised floor void
  • Installation of 100mm MDF skirting to all new partition wall and matching architrave to new doorset
  • Application of mist coat and two coats of emulsion to all new partition walls – Colour TBC
  • Application of undercoat and two top coats of gloss to all new woodwork, including 2 no. doors
  • Re-lay carpet tiles after wall complete
  • Move ceiling vent – Assuming these are on flexi hose
  • Client Feedback

    The project received exceptional feedback from Network Rail, with MML3 Programme Head of Rail Systems Dean Frazer commenting: “On the back of this I would just like to extend my thanks to you and the team for getting this job done in good time for us. It’s been well received and noted by the Route Directors. Especially the way the team engaged with Network Rail in terms of keeping the disturbance down to a minimum given the sensitivity working around the signallers in the operations room.”
